VBESTLIFE 48V 60V 72V 600W Brushless Motor Controller - Electric Tricycle Conversion Kit for E-Bikes, Scooters & Mobility Vehicles | High Power Speed Control for DIY Electric Vehicle Upgrades

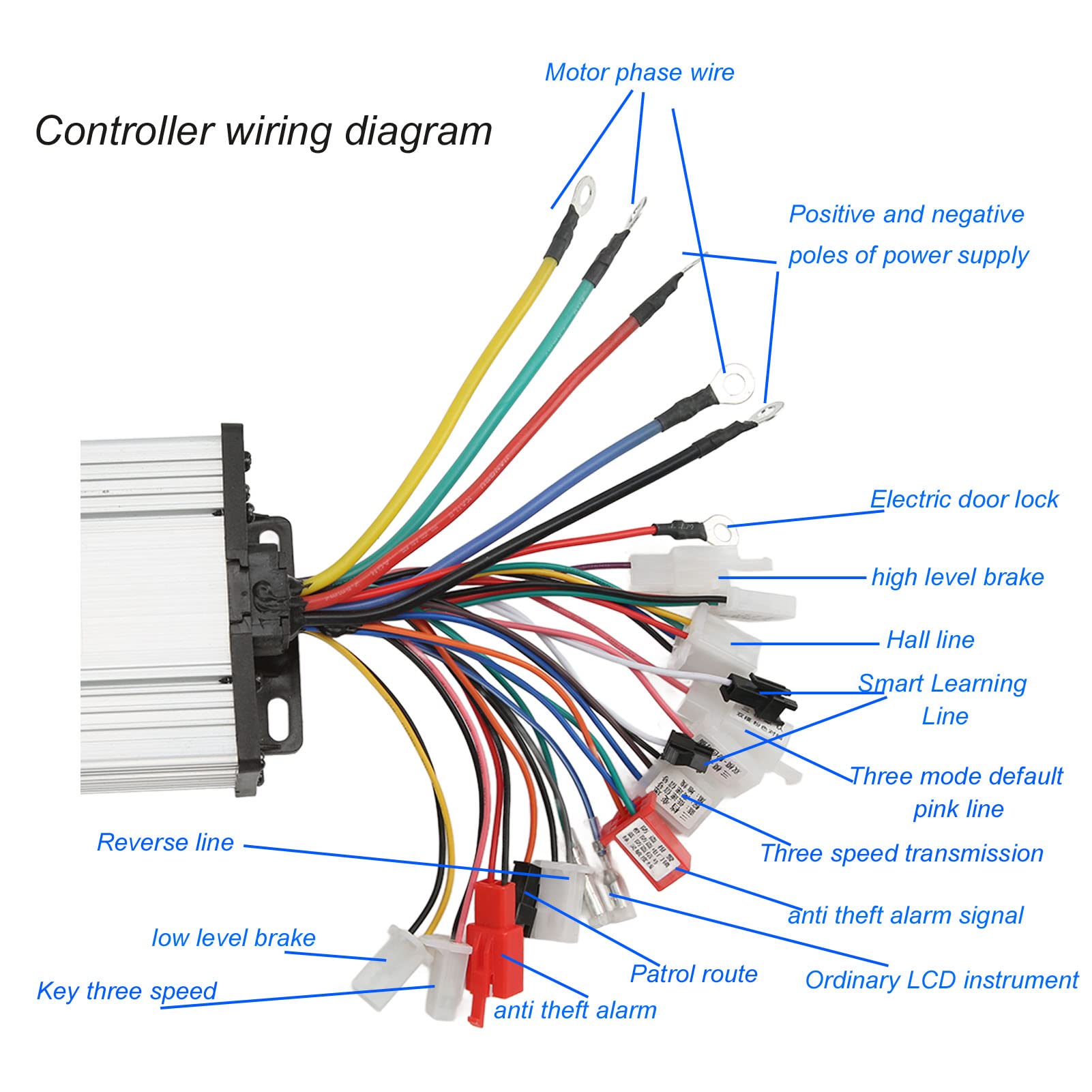

Specification: Item Type: Electric Brushless Controller Product Material: Aluminum Alloy Gross Weight: 528g / 18.62oz Voltage: 48V/60V/72V Power: 600W Current Limit: 30±1A Phase Angle: 60°/120° Turning Voltage: 1.1-4.2V Undervoltage: Automatic 1pc electric door lock 2pcs positive and negative poles of the power supply 3pcs motor phase wires 1pc anti theft alarm wire (red: positive, black: ground) 1pc anti theft alarm line anti theft electric door lock, blue: anti theft , green: sensitivity line) 2pcs Three mode default line 1pc high battery brake (: high electric brake ) 1pc low battery wire brake (yellow: level brake, black: ground wire) 1pc button three speed cable (: button , black: ground) 1pc reversing (gray: reversing , black: 1 ground wire) 1pc motor hall (red: 5V positive, black: ground, yellow: green and blue hall) 1pc gear shift (blue: low speed , brown: high speed , black: ground wire) White line blackhead: 2pcs learning line line blackhead: 1pc line Green wire transparent head: 1pc meter wire Blue and white line transparent head: 1pc LCD instrument line 1pc low battery brake cable (black: bottom wire, yellow: low battery brake ) Three wire switch (red: 5V positive, green: wire, black: ground wire) line (1 white line blackhead + 1 line blackhead) line white (dual mode three mode switching line) Package List: 1 x Motor Brushless Controller

SENSITIVE CONTROLThe brushless motor controller can provide stable speed and sensitive braking and direction change control.

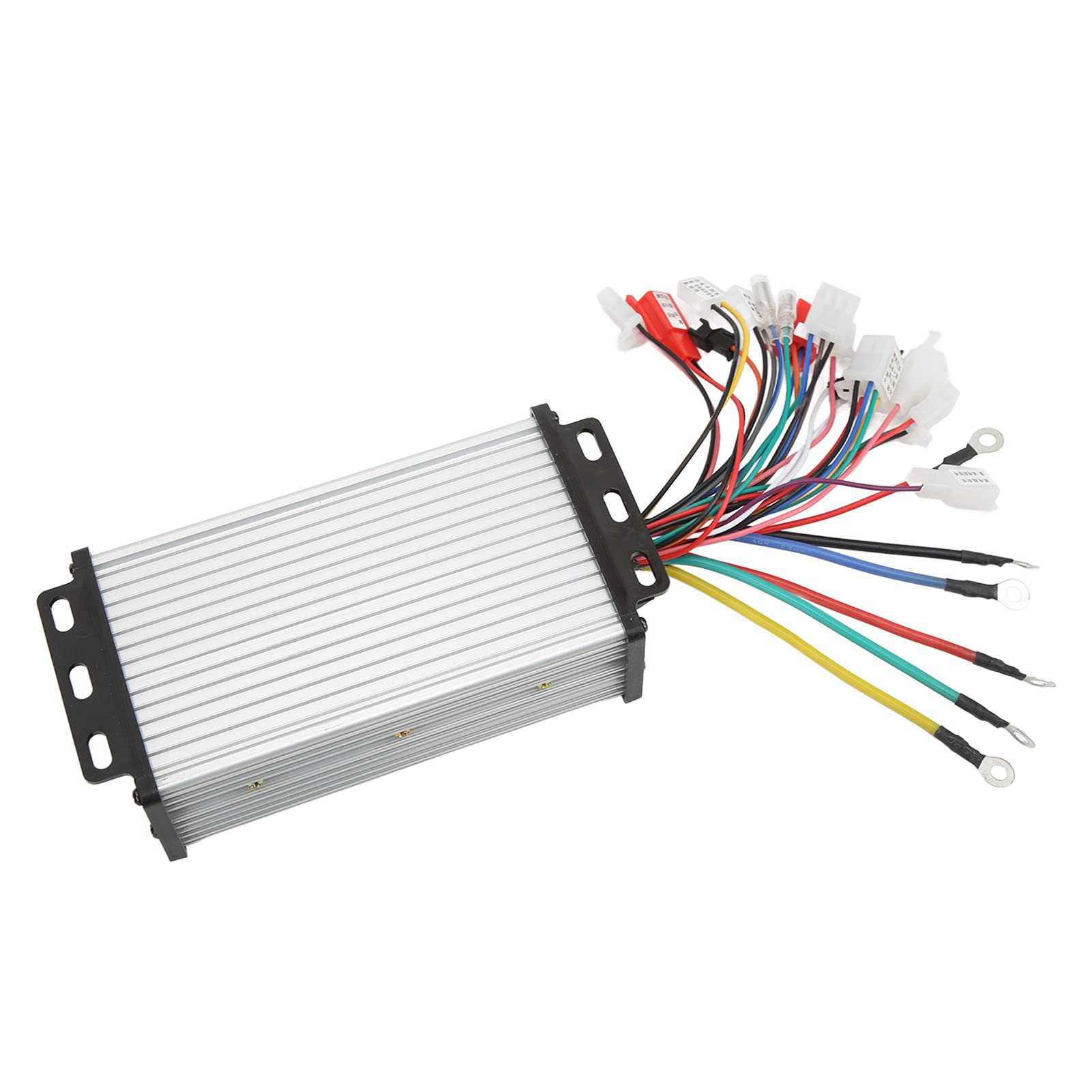

GOOD HEAT DISSIPATIONThe controller housing is made of aluminum alloy, with a recessed design for good heat dissipation characteristics to the internal circuit, from thermal overload.

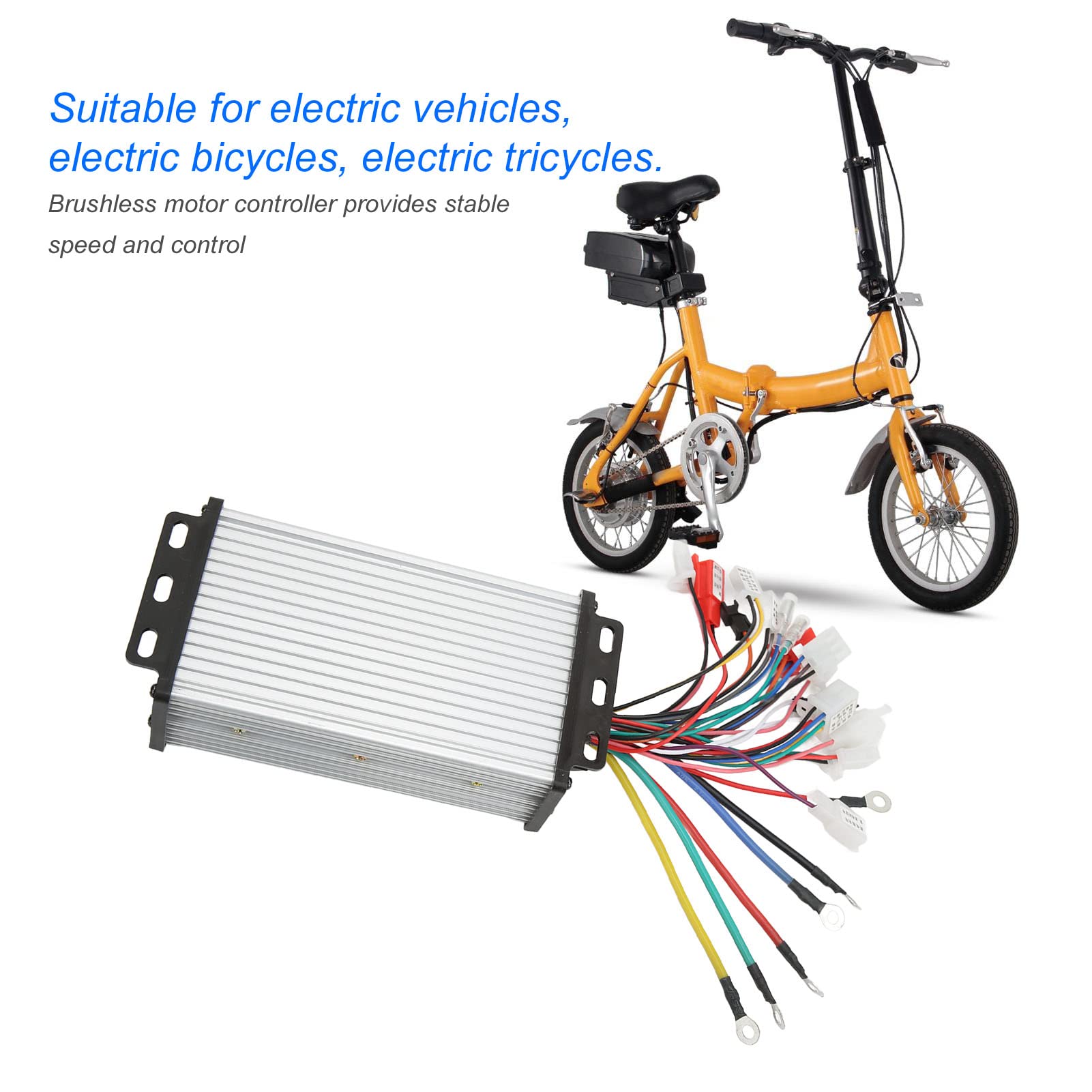

APPLICATION FORThe 48V/60V/72V 600W brushless motor controller is suitable for electric vehicles, electric and electric tricycles.

LOW NOISE controller adopts quiet and low noise design, no noise pollution, and worry .

EASY TO INSTALLEasy to install and simple to detach, providing users a good using experience.Each interface has a function description, and the function can be realized by connecting the socket according to your own needs.
