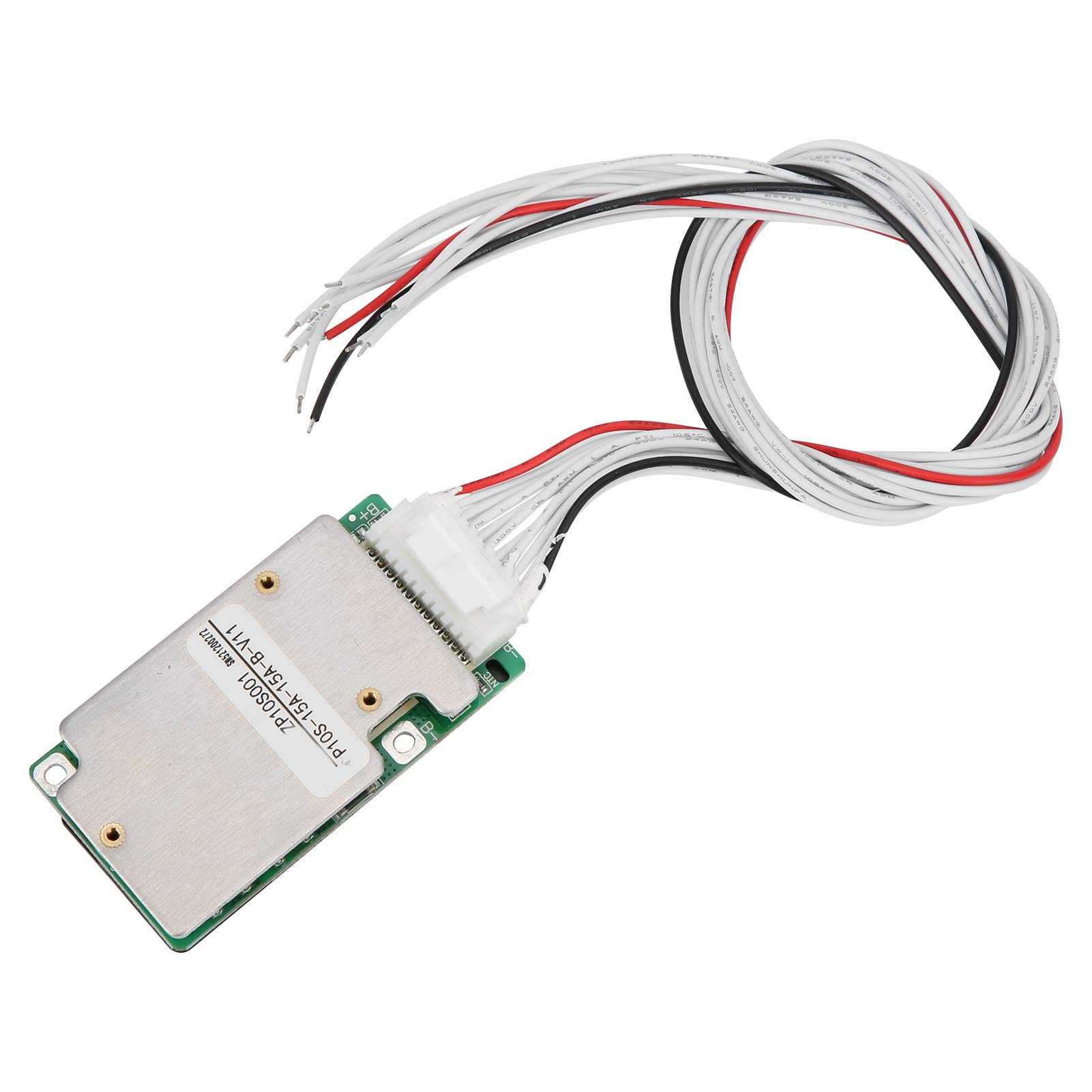

Battery Protection Board - Safe BMS Charger for Electric Bikes & Scooters | Overcharge Protection | DIY E-Bike & E-Scooter Battery Maintenance

Feature:1. New low internal resistance MOS tube, open heat dissipation, more uniform heat dissipation.2. With dropped wire protection, one of the wires is loose, the board can immediately protect the battery from charging or discharging.3. Smaller and more flexible for using.4. The same port with balanced temperature control, safer to use.5. The protection board is widely used for most of the electric tools, electric scooters, electric bicycles, electric tricycles, electric motorcycles, electric car and so on.Specification:Condition: 100% Brand NewItem Type: Li‑ion Protection BoardMaterial: Aluminum Case + PlasticColor: As Pictures Shown Applicable Battery: Ternary Battery NominalSpecification of Protection Plate :10S Ternary 15AApplicable Model: ScooterRated Voltage: 36VMotor Power: within 250wCurrent Limit of Controller: 10AWork Power Consumption: <50 μA Temperature Range: -20℃/+70℃Discharge Current: 15ADischarge Overcurrent Protection Value: 3 Times of Continuous CurrentThe Conduction Resistance of Main Loop: < 30 mΩCharging Current (Same Port): 10ACharging Current (Split Port): NoneCharging Voltage: Ternary Battery Seriesx4.2VOvercharge Protection:Detection Voltage: Ternary4.25 ±0.025vDetection Delay: 1000msVoltage Release: Ternary4.15 ± 0.05vBalance Voltage: Test Voltage: NARelease Voltage: NABalance Current: NAOvervoltage Protection:Detection Voltage: Ternary2.8±0.1vDetection Delay: 1000 msVoltage Release: Ternary 3±0.1vOvercurrent Protection:Test Voltage: NADetection Delay: 350 msRelease Condition: Disconnect Load/ChargeShort Circuit ProtectionTrigger Condition: Short Circuit of External LoadDetection Delay: 300 usRel

New low internal resistance MOS tube, open heat dissipation, more uniform heat dissipation.

The protection board is widely used for most of the electric tools, electric scooters, electric bicycles, electric tricycles, electric motorcycles, electric car and so on.

With dropped wire protection, one of the wires is loose, the board can immediately protect the battery from charging or discharging.

The same port with balanced temperature control, safer to use.

Smaller and more flexible for using.
