Focket 36V Electric Skateboard ESC Kit - Single Motor Controller with Remote for DIY Electric Longboard & Scooter | Perfect for Commuting, Campus Travel & Outdoor Adventures

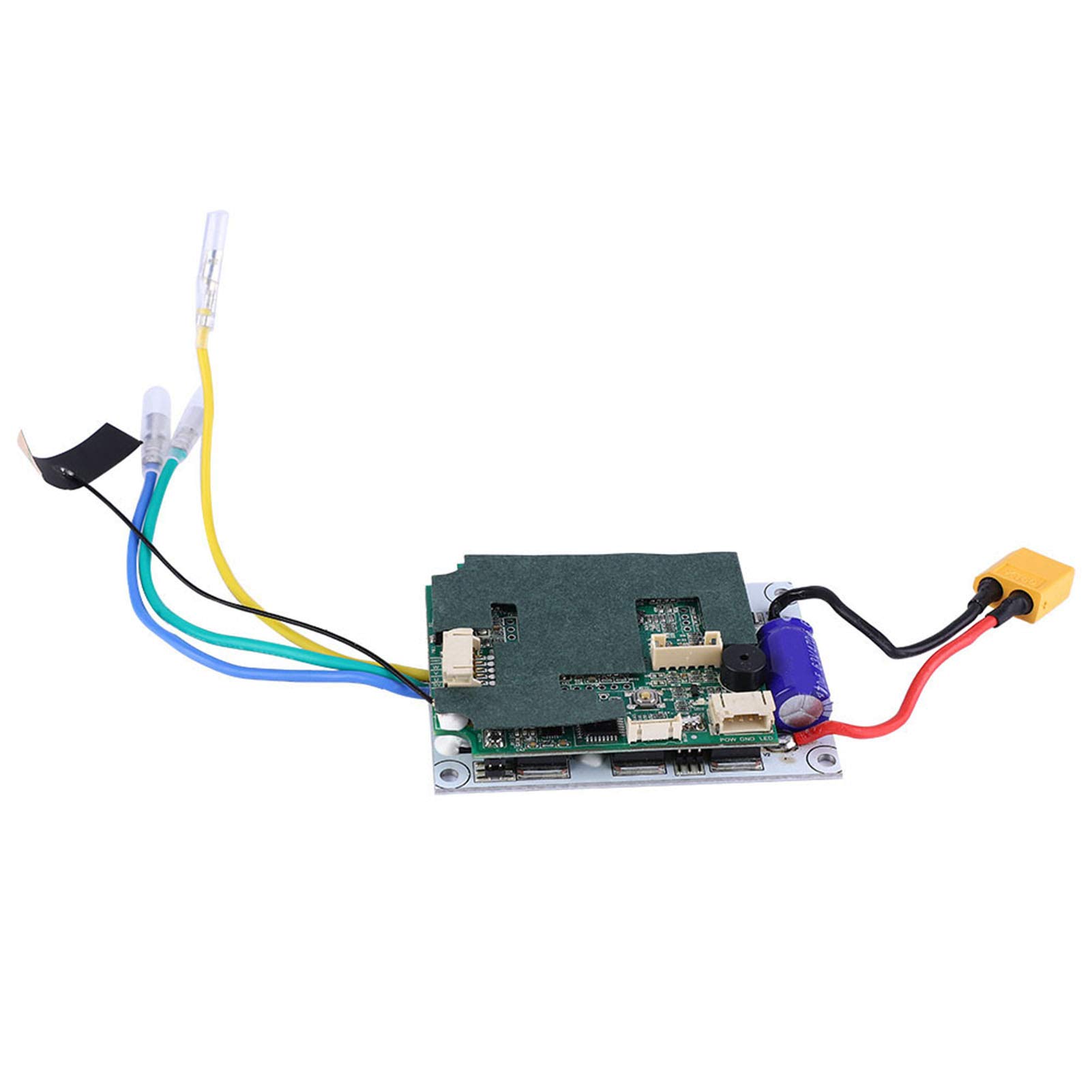

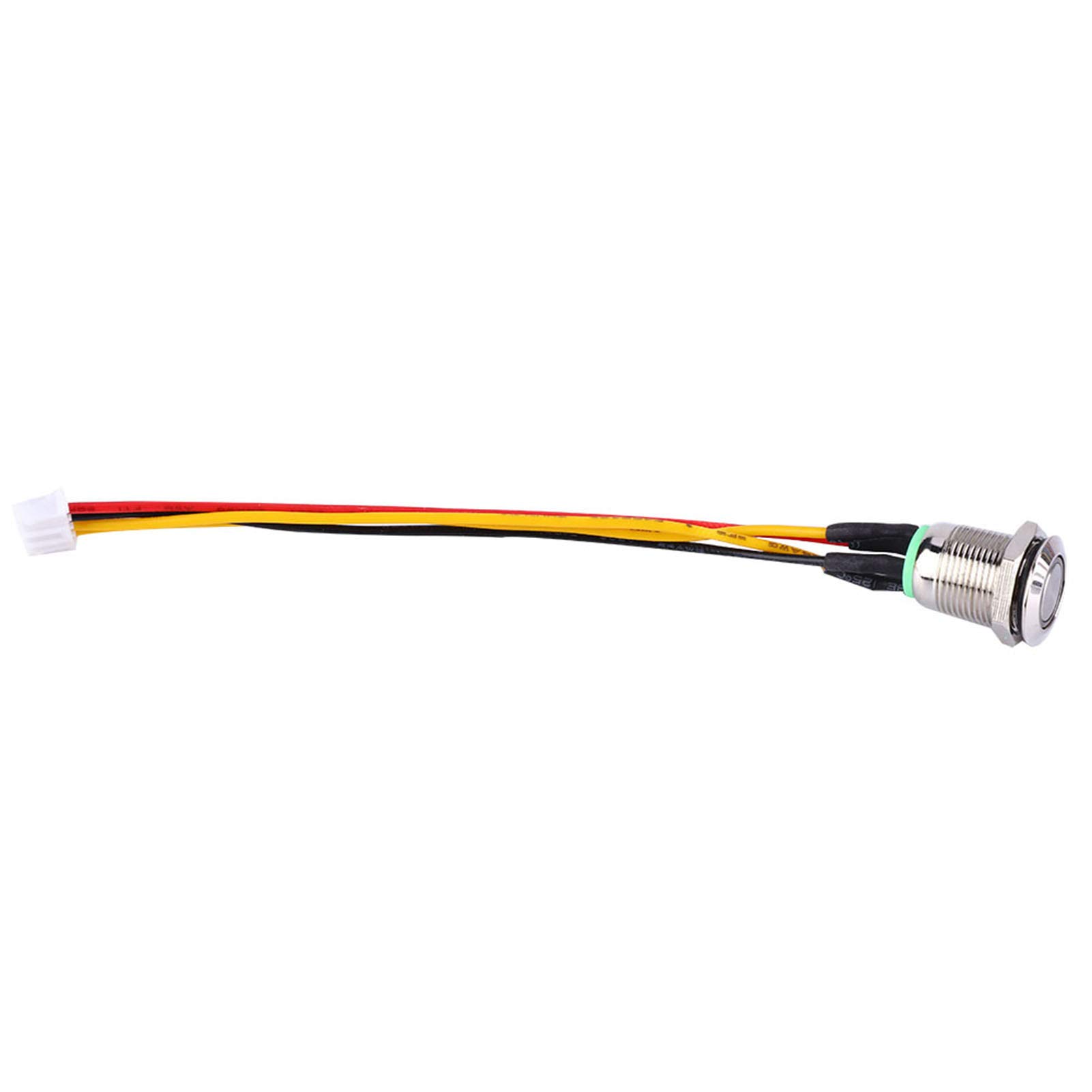

Specifications:Single Motor Drive ESC: Rated Voltage: 36V Current: 12A Power: 430W (36V) Rotate Speed: 3000rpm Speed: 35km/h Drive Mode: FOC Sensing Mode: Hall Load Bearing: 120kg : Over-voltage, Under-voltage, Overheat, Stall, CW/CCW, Overcurrent, Speed Control Package List: 1 * Control 1 * Remote Control Transmitter 1 * LED Battery Indicator 1 * Switch 1 * USB cable NOTE: No Installation Guides are included, professional usage is strongly recommended. Controller Operating Instructions: 1. Controller Start Way: The controller switch button has two lines , plug in this switch. When the Controller is powered, press the switch, hear the sound:"drop", the control board flashing red light, indicating that the control board has been activated. Close the control board as , press again is ok. 2. Control Board and The Motor Connection Way: motor with rubber head of the three thick line is the power cord, five side by side with the thin line is the Hall sensing line. For ease of , this controller setting is the single drive mode. Only connect the three thick wires on the motor and the driver board respectively(here the connection order is random), there is no need to connect five thin wires (Holzer wire), and the motor of the remote controller can achieve starting and stopping smoothly. 3. The five thin wires (Hall line) on the motor are used to connect to other controllers if you need it later. If you need thin wires and you can use it. Even if you do not use thin wires (Hall line), the the of this controller are that the controller board also work very good, more convenient to use, the failure rate is low.

????▶High Quality Material◀-Made of high quality chip and electronic components, single drive design can offer excellent and stable performance. brand new and high quality.

????▶Supporting Remote Control◀-The solid structure of mainboard can greatly lengthen the service life. With remote receiver module, so it supports remote control.Bring a better experience.

????▶Easy Wire Management◀-The well-organized circuit board is easy to install,highly modifiable electronic speed controller designed for DIY Electric Skateboards , Custom design but easy wire management ,Preserve module connections for both master and slave board, but needs professional skills.

????▶Stable Module◀-This electric longboard skateboard control system has EMP control module with remote module, it can do as ESC do.ESC would be easy to damage, this control module would be more stable and cheaper.

????▶Multi-Functional◀-With over-voltage,under-voltage,overheating, over-current​ , and to use, supports speed control, easy to use.
