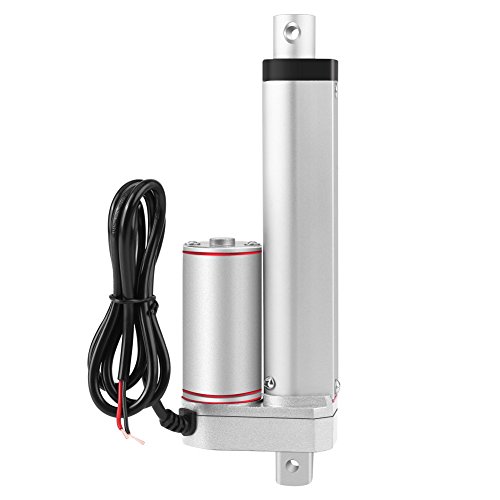

100mm Stroke 12V DC Linear Actuator Motor - 750N Heavy Duty, 12mm/s Speed - Perfect for Electric Medical Beds, Adjustable Sofas, Standing Desks & Lift Rods (Home & Office Automation)

Specifications: Size: 20.5 x 4.0 x 7.5cm/8.1 x 3 x 1.6inch Weight: 1070 g Permanent magnet DC motor drive voltage: 12V DC Maximum thrust / pull: 750N Standard Stroke: S = 100mm Minimum distance (the distance between the front and rear of the two holes) :L = S(stroke)+ 105mm putter between two holes = 2XS(travel)+ 105mm No load speed: 10mm/s Speed and thrust relationship: 5mm / s (kg) -50s (50kg) Standard protection level: IP54 Speed: 12 mm/s Noise level: 50 dB Package Included: 1 x Electric Linear Actuator Motor 2 x Bracket 2 x bolt 2 x cotter pin for the linear actuators

Electric putter, also known as push rod motor, electric cylinder and linear actuator

The electric putter is an electric drive that converts the motor's rotational motion into a straight reciprocating motion of the push rod

Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control

Main use: electric medical bed, electric sofa, electric stand lift rod, industrial electric lift system, camera frame, video machine, wedding system

Low noise design,noise level is 50dB
