CHICIRIS 48V 500W Electric Bike Conversion Kit with Waterproof Controller & 1 to 2 Cable - E-Bike Motor Kit for DIY Bicycle to Electric Scooter Conversion - Perfect for Commuting, Off-Road & Urban Riding

Specification:Item Type: Electric Bike Controller KitMaterial: Aluminum Alloy + ABS PlasticController Box: Approx. 82 x 53 x 31mm / 3.2 x 2.1 x 1.2inMeter: Approx. 96 x 68mm / 3.8 x 2.7inController Rated Voltage: DC 36V/48VController Rated Current: 7AController Maximum Current: 15±1AController Speed Setting: 1-4.2VController Brake Input: Low LevelController Low Voltage Protection: DC 30/40±0.5VApplicable Brushless Motor Power: 250W, 350WConnector Type: Full Waterproof Connector1 to 2 Wire Description: One end is connected to the controller, the other end is connected to the meter and finger dialController Wire Definition:1. Red, black single wire: Power wire2. Black single large wire (9pin): Motor wire3. Black single wire (9pin): 1 to 2 wires4. Black single wire (3pin): PAS power assist sensor wireLCD8H Meter Function Description: Up Button, Switch Button, Down Button, PAS , Battery Capacity Indication, Power Display, Running , One Way Time, Total Travel Time, Battery Voltage, Brake Display, 6km/h Thrust Assist, Riding Speed (Metric), Maximum Speed, Average Speed, Distance Traveled, Total Distance, Backlight and Headlights, Ambient Celsius, Ambient Fahrenheit.How to Use:Controller: The wire color definition interface on the controller can be connected to the socket of the accessory to realize the function. For the specific operation, please refer to the wiring diagram and manual.Package List:1 x Controller1 x Meter1 x Meter Mounting Bracket4 x Meter Mounting Bracket Gasket2 x Meter Mounting Bracket Screws1 x Meter Manual1 x Throttle Finger Dial1 Assist Sensor1 x Controller Wiring Manual1 x One to Two Connecting WireNote:1. Retrofit kits must be fully waterproof kits.2. Manual measurement, please allow some errors.

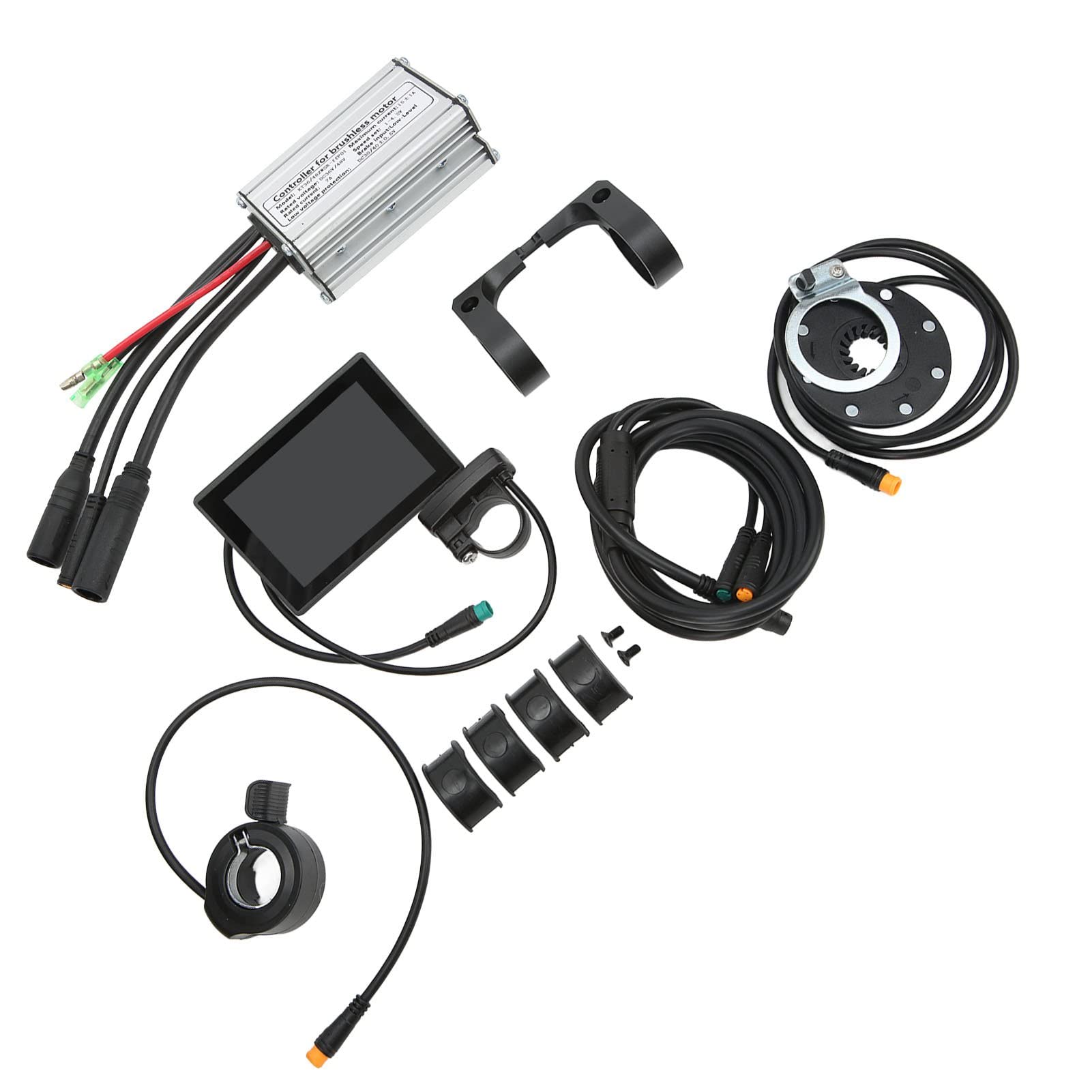

MODIFICATION KIT: lithium battery modification controller kit, including 15A controller, LCD8S meter, 130X finger dial, 8C power assist sensor and 1 to 2 connecting wire, improve riding fun.

LCD DISPLAY: Electric bike controller kit with LCD8S meter, you can view the data on the panel more easily. Such as power, backlight, brake, temperature, travel time, speed, 6km/h thrust assist, etc.

WATERPROOF METER: Electric bike modified meter is made of high quality ABS material, with good toughness and waterproof performance, providing better protection, light and durable.

APPLICATION: 15A brushless motor controller kit for 250W, 350W brushless motors. Mainly used for DIY electric , electric scooters, folding bikes, etc, suitable for cyclists who like challenges.

GOOD HEAT DISSIPATION: Electric conversion kit, metal controller shell, grooved design, good heat dissipation, provide internal circuit protection and avoid thermal overload.
