EATC Electric Bike Conversion Kit - 48V 1000W Motor with LCD6 Display for Mountain & Folding Bikes | Perfect for Commuting, Off-Road Adventures & Urban Riding

Specification:Item Type: Electric Bike Conversion Kit Material: Aluminum Alloy + ABS plasticController Box Size: Approx. 82x53x31mm / 3.2x2.1x1.2inInstrument Size: Approx. 65x120mm / 2.6x4.7inController Rated Voltage: DC 36V/48VController Rated Current: 7AController Maximum Current: 15±1AController Speed Setting: 1-4.2VController Brake Input: Low LevelController Low Voltage Protection: DC 30/40±0.5VApplicable Brushless Motor Power: 250W, 350WConnector Type: Fully Waterproof Connector1 to 2 Wire Description: One End Connected to the Controller, the Other Two Ends Connected to the Instrument and Finger DialController wire definition:1. Red, black single wire: power wire 2. Single large black wire (9pin): motor wire3. Single black wire (9pin): 1 To 2 wire4. Single black wire (3pin): PAS power sensor wireLCD6 meter function description: up button, on/off button, down button, one way time, total travel time, ride speed (metric), ride speed (imperial), maximum speed, average speed, PAS marker, CADENCE display, distance (metric), distance (imperial), travel distance, total distance, battery voltage, backlight and headlight, brake display, cruising function display, PAS start display, open throttle, 6KM/H thrust assist system, motor temperature (°F/°C), motor power, ambient temperature (°F/°C)How to Use:Description of the controller: The wire colour definition interface on the controller can be connected to the socket of the accessory to achieve the function, the specific operation can refer to the wiring diagram and the manual. Package List:1 x Controller 1 x Instrument1 x Instrument Mounting Bracket4 x Gauge Mounting Bracket Washers2 x Instrument Mounting Bracket Screws1 x Instrument Manual1 x Throttle Pointer 1 x Sensor 1 x Controller Wiring Instructions 1 x One Two Connection CableNote:1. Note that the conversion kit

Display Function: The LCD6 display meter has a variety of functions that make it easier for you to view the data on the panel; the product will show you a lot of useful data on your bike while cycling.

Application: Electric conversion motor kit for 250W,350W brushless motors; Main uses: DIY electric bikes, electric scooters, folding bikes, etc.

Premium Material: The instrument is made of high quality ABS material, lightweight and robust, with fine workmanship, good toughness and waterproof performance, providing better protection for the internal circuitry and making it more durable.

Multifunction: The display meter shows the on/off button, total travel time, riding speed, PAS markers, CADENCE display, distance, backlight and headlight, brake display, cruising function display, PAS start display, 6KM/H thrust assist system, ambient te

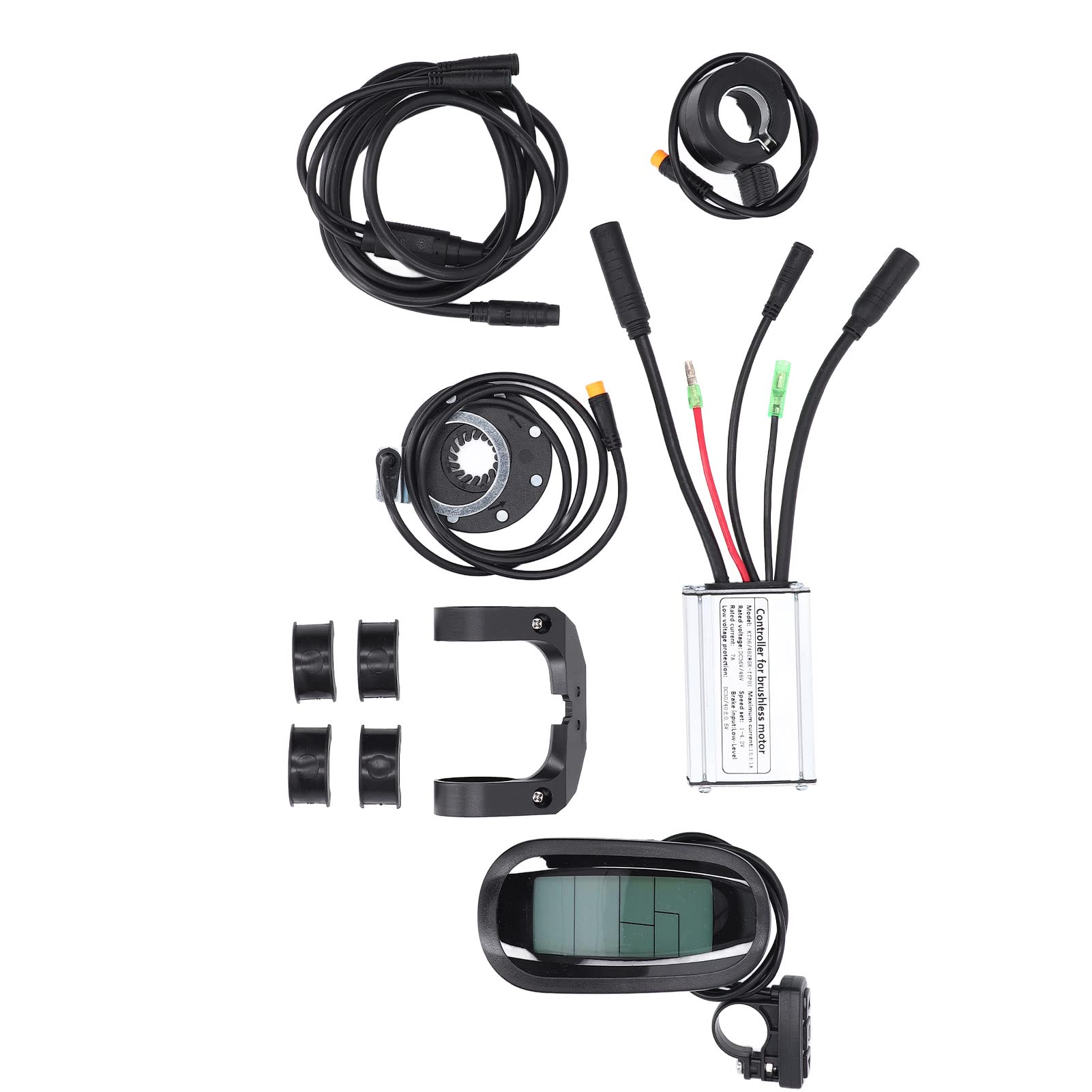

Full Set: Electric bike conversion kit includes 15A controller + LCD6 meter + 130X finger paddle + 8C + one tow two connection cable. Easy to maintain, great fun to ride, suitable for who like challenges.
